This article was originally published in Sea Kayaker Magazine, February, 2006.
[Edits and updates in brackets]
[Now updated with an addendum on repairing skin coat aramid canoes.]
Gel-coat scratches in a fiberglass kayak are a fact of life. If you paddle often and paddle hard, you’re bound to scuff up the bottom a bit. This is good. It means that you’re spending time out on the water enjoying your boat. If you can learn to ignore superficial scratches in the gel coat, your life will be better.
However, there comes a time when even the most hardened boat abuser starts to think about fixing things up a bit. Extensive spiderweb cracks, chunks of missing gel or wear through to the glass laminate are worth taking a look at.
The good news is that working with gel coat is not terribly difficult. Even us mortals can get a polished gel-coat repair. The basic procedure for making a repair has five parts: internal hull patching, surface prep, gel-coat application, sanding and finishing. If you follow this progression and are patient, you’ll get good results.
Causes of Damage
Before you begin your repair, it makes sense to think about what causes gel-coat damage in the first place. There are three primary sources: impacts, abrasions and repeated stress. Impacts may damage gel coat by deforming the hull enough that the gel exceeds its ability to flex. The resulting fracture in the gel coat will often look like a star or a spiderweb. With a heavy impact, it’s possible to break a chunk of gel coat off of the hull, leaving a deep gouge or even a hole in the boat.
Abrasion often happens to the keel of a kayak at the stem and stern. Fiberglass and gel coat are quite abrasion resistant, however, dragging over rocks or coarse sand can wear through the gel. Heavy abrasion to the keel is often repaired by the application of a full keel strip to the kayak. Minor abrasions may be fixed, as outlined in this article.
Cracks from repeated stress are also common. This is particularly true in boats that have rigid bulkheads rather than foam. The bulkhead in this case creates a hinge point or “stress riser” against which the hull flexes. Repeated flexing over time may soften the laminate in this area and give rise to cracks that run across the hull at the bulkhead.
It’s not safe to assume that the fiberglass beneath the cracks is undamaged. If the boat was impacted hard enough to crack the gel coat, or if it’s been flexing at the bulkheads, the underlying laminate may be weakened. Even if there’s no visible damage or leakage, the fiberglass may have been stressed enough to lose some of its integrity and strength. If this is the case, you’ll need to apply a patch to the inside of the hull to prevent the cracks from returning.
The vast majority of fiberglass kayaks are made with polyester resins. Some Kevlar kayaks are laminated with vinylester or epoxy resins. The techniques outlined in this article are intended to be used on kayaks that are laminated with polyester or vinylester resin and polyester gel coat. If you have a kayak that’s laminated with epoxy, you won’t be able use the materials listed here (polyester resin and gel coat will not adhere to epoxy). The greatest likelihood is that your kayak is laminated with polyester resin. If you’re in doubt, contact the manufacturer.
[Here at Wenonah we use polyester resin for canoe and kayak repairs. As with most things, if you go online you’ll find a lot of strong opinions about what kind of resin is best to use. Unless you’re repairing a canoe or kayak made from epoxy you should use polyester resin. This is the most commonly available resin. It’s more forgiving that vinylester when it comes to temp, catalyst ratio and humidity. It sticks to both vinylester and polyester laminates. It’s less expensive than epoxy. Lastly since polyester gel coat doesn’t adhere well to epoxy resins, polyester is a better choice than epoxy for repairs involving gel coat. Bottom line? Just use polyester. It works. Wenonah has repaired hundreds of canoes through the years using polyester resin and our experience tells us that it is the best resin to use for home repair.]
Whenever you’re working with fiberglass, make sure that you take precautions against dust, fumes and chemicals. Wear a dust mask while sanding and a respirator that protects you against chemical vapors. Nitrile gloves offer good protection against the chemicals that you’ll be using, most of which can be absorbed through the skin. Work in a well-ventilated area.
Interior Fiberglass Patching
You only have to apply a fiberglass patch if the hull is soft in the area of the gel-coat damage. If not, skip this step and proceed directly to surface preparation.
[Acetone can be used for all surface prep and to remove wax residue between coats.]
For patching, you’ll need fiberglass mat, waxed polyester resin, hardener and sandpaper. Glass mat is an unwoven fiberglass cloth that looks like blotter paper or felt. It’s commonly available in an ounce-and-a-half weight and works well for patches because it conforms to curves and absorbs enough resin to be stiff. Fiberglass cloth has a higher tensile strength than glass mat and is used in the construction of light, strong kayaks. However, glass cloth doesn’t hold as much resin and is harder to conform to tight spots.
Waxed resin contains paraffin wax as a surfacing agent. Unwaxed resin will dry with a sticky surface and is used for laminating multiple layers of glass cloth. Waxed resin will dry with a hard, waxy finish. If you need to put another layer of cloth or resin onto this surface after it has cured, you must sand the wax off and wipe with a solvent-like acetone.
[All the standard fiberglass resins you find at the home improvement store will have wax in them. The only place you’re likely to find unwaxed resin would be at a marine supply store. In this case, the resin is usually labeled as “laminating resin” to specify a lack of surfacing agent.]
[Speaking of wax, this is probably a good place to mention that you want to use waxed paper cups for mixing resin, not plastic drink cups. The styrene in polyester resin will melt plastic party cups. Specialty plastic mixing tubs are available from fiberglass suppliers that don’t melt, but a sleeve of cardboard Dixie cups is easy to find and inexpensive.]
You’ll need a workspace temperature of above 65˚F. Polyester resin is sensitive to temperature, and both the kayak and the workspace must be warm for your repairs to cure. The ratios for catalyzing resin are usually calculated at 77˚F. Temperatures cooler than this will slow the hardening of your repair. Temperatures warmer than 77˚ will speed hardening and shorten the working time or “pot life” for the resin. A large batch will cure more quickly than a small one.
With 60- or 100-grit paper, sand the area inside the hull that is to receive the patch. When you’ve thoroughly roughed the surface, wipe down the sanded area with denatured alcohol [or acetone]. Next, cut a patch of glass cloth about a half inch larger than the damaged area. Catalyze the resin to the ratio recommended by the manufacturer. This ratio is typically 15 drops of hardener to one ounce of resin. Place the patch onto a piece of scrap cardboard or wax paper and apply catalyzed resin with a brush (an inexpensive chip brush works well) until the fiberglass cloth becomes translucent.
Paint a thin layer of resin onto the hull where you’ve sanded. Remove the “wetted out” patch from the cardboard and apply it over this resin. Using the same brush, paint more resin onto the patch until the surface is smooth and there are no visible air bubbles. Allow the patch to cure and sand it to ensure that there are no sharp edges inside the hull. Wipe with alcohol [or acetone] as before, and catalyze a bit more resin. Paint a thin coat of resin over the patch to complete the repair.
For a simple gel-coat crack where there’s no major structural damage, you usually don’t need more than one piece of fiberglass mat as a patch. However, some people may choose to lay a piece of woven fiberglass cloth over the mat patch to more closely match the appearance of the inside of the hull. If you choose to do this, cut the woven cloth about a half-inch larger than the mat patch, and wet it out at the same time. Lay the wetted-out cloth over the mat. Finally, finish the repair with additional resin and sanding as outlined previously. It’s possible to pigment the resin in an effort to match the hull color. Left to its own devices, most polyester resin will cure clear to translucent brown.
Exterior Surface Preparation

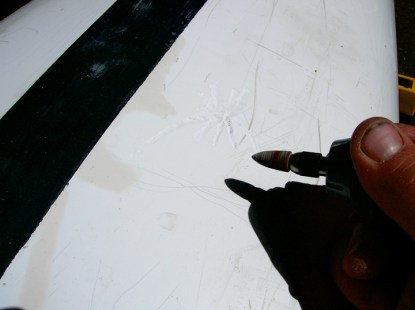

To get a quality gel-coat repair, you need to prep the damaged area properly. This means chipping away any loose material and clearing the gel coat away so that you’ll be applying new gel directly to a stable fiberglass substrate. I use a motor tool with an abrasive bit to do this work. You may follow individual cracks with a fine bit or rough out the area between closely spaced cracks.
Be careful not to remove the fiberglass laminate itself as you grind down through the gel coat. You’ll want to taper or “feather” the edge of the repair area into a shallow dish or “V” shape as you work. The next step is to sand with 150- to 220-grit paper. Using the sandpaper, continue to feather the edges of the prepped area. Work out onto the hull of the boat so that you’ve sanded a spot that’s roughly rectangular and extends at least an inch beyond the bare fiberglass.
If you have a Kevlar kayak, you’ll have trouble with prep because of the material’s tendency to “fuzz” when it’s sanded. On a Kevlar boat, it’s best to do all of your prep with a razor knife and to keep your sandpaper as far away from the substrate as possible. If you have some fuzzing, you can still complete the repair. Loose strands that are captured in hardened gel coat are more sand-able. Just be prepared for a less-than-perfect result.

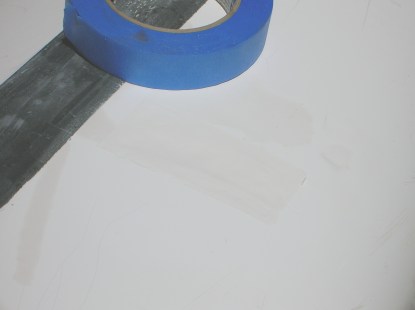

Once you’ve finished sanding, wipe the surface of the repair with denatured alcohol [or acetone], making sure to remove all surface debris. Next, mask off the area around the repair with blue 3M masking tape. This tape is preferred, as it doesn’t leave a sticky residue when it’s removed. Make sure that your masking tape overlaps the edge of the sanded area, so that when you apply gel coat, it will only be applied to a sanded surface. If the repair is to be done on a surface that isn’t flat, you may need to create masking-tape “dams” to prevent drips. Creative use of masking tape will also help you build up thicker layers of gel coat to repair deep chips or gouges.
Applying the Gel Coat
Most kayak hulls are white, and white gel coat is available at most marine supply stores. If you’re trying to repair a colored hull or deck, you’re often best off contacting the manufacturer of your kayak for pigment or gel coat. Some manufacturers will send you a small vial of pigment for free, which may then be mixed with clear gel coat to create the proper color. Other manufacturers sell small containers of colored gel. It’s safe to assume that, because of sun fading or darkening, your color will not match even if you get it directly from the manufacturer. Most repairs blend with time as the patch weathers.
First, the gel must be mixed with catalyst in the proper ratio. This ratio is specified by the manufacturer, but in practice, polyester gel coats are fairly tolerant of imprecise mixing. I typically use small waxed-paper cups for mixing. With one-quarter inch of gel coat in the bottom of one of these cups, I add about 15-20 drops of catalyst. This ratio is a bit “hotter” than recommended, but it works well.
Once you’ve mixed your gel coat, you have only a certain amount of time that you can work with it. As with the resin, gel-coat’s cure time will vary with the temperature of your workspace and the amount of catalyst. This also applies to the thickness of the gel coat that you apply to the hull. A super-thin layer of gel will not cure at all unless you add extra catalyst. Most of the time, ratios of catalyst for home use are measured in drops per ounce of resin. In cool temperatures, or with tiny batches, you need to add more drops. In these circumstances, I might add 25 drops to my cup of gel coat. The ratio of catalyst to resin should never exceed two percent. This is pretty difficult to measure in small batches, and in practice, finding the correct ratio often relies on experience and a bit of guesswork. Remember, polyester resin is forgiving—don’t worry.
Gel coats are designed to cure in an air-free environment. When a kayak is built, the gel-coat layer is put into the mold first and allowed to set a bit before the fiberglass is laid over it. When you do repairs, you are essentially working backwards and need to create a barrier to oxygen so that the gel will harden properly. The barrier can be created by taping a piece of waxed paper over the wet gel once you’ve applied it. However, this tends to put ripples into the surface of the patch. I prefer to add waxed styrene as a surfacing agent.

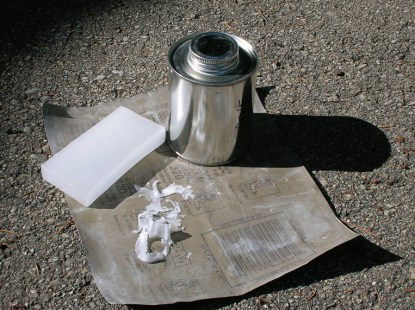

Waxed styrene can be hard to find in the U.S. I make my own by shaving tiny flakes of canning paraffin wax (available at grocery stores) into straight styrene (supplied by many marine stores). Shave paraffin into the styrene and stir the mixture until the wax dissolves. If you add too much wax, the mixture will become cloudy. Add a bit more styrene if this happens. If you use waxed styrene, add about 10 percent to the gel-coat mix before you add the catalyst. If you can’t find styrene, you may use waxed polyester resin instead.
Mix the 25 percent resin with 75 percent gel coat. This technique works well but tends to darken the gel coat a bit. Consider adding pigment to the gel coat if you’re using waxed resin instead of styrene.
There are many ways to apply the gel coat to your kayak. I have seen people paint it on, scrape it on with a razor blade, dab it on from the end of a stirring stick or pour it into a masking-tape dam—all of these work. Brushes work well but may leave bristles in your work. Foam brushes are good for thin layers but may dissolve and disintegrate during application. Hobby brushes with fine bristles work particularly well for applying gel coat precisely to small areas.
Apply a first coat thick enough to fill the gouges and restore the contour of the hull once you’ve sanded. Keep in mind that the gel coat will shrink as it cures. Apply gel coat to the hull so that it covers the prepped area up to the masking tape completely. Once the gel coat has started to harden a little, peel away the masking tape to reveal a clean edge. If you wait too long, the gel coat will harden completely, and you’ll have to chip it away from the tape before you can sand.
Once the gel is cured, you can begin sanding. This process is fairly straightforward, but there are a few tricks.
Wet-sanding the repair with water speeds cutting and keeps sandpaper from clogging. Wet-dry sandpaper is readily available in grades finer than 300 grit and can be found coarser if you look around. Ideally you’ll have wet-dry sandpaper in 320, 400, 600, 800 and 1000 grit. The 800-grit and finer papers can be found at marine-supply stores. Unless your repair is huge, you’ll only need one sheet of paper per grade. [400, 600 and 1000 are sufficient].
It helps to use a sanding block of some sort. Rectangular chunks of minicell foam work extremely well. A minicell block will conform to the curved shape of the hull better than one made of wood or rubber.

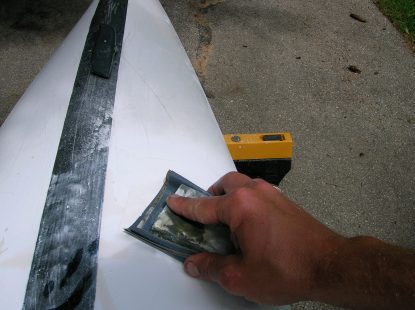

Start with 100 or 150 grit to remove material. Do the rough shaping with this paper and switch to 220 to remove any deep scratches. Once you’re satisfied with the surface, move to 320. Each progressively finer paper will remove the scratches from the previous grade. Moving through all the grades doesn’t take long, so don’t start with the finest grade right away. If you jump from 320 grit to 1000 grit, you’ll eventually remove the scratches, but it’ll take forever and use up a lot of sandpaper. Keep in mind that even fine sandpaper will remove some material from the hull. Try to anticipate this as you sand, so that your repair finishes flush with the hull.
Use plenty of water. When you think that you’re finished with one grade of paper, wipe the sanding residue off of the hull with a rag and look at the repair from an angle to get a better view. This will let you get a better look at the finish. You’re looking for obvious scratches and for a uniform texture that indicates that the area has been thoroughly sanded.

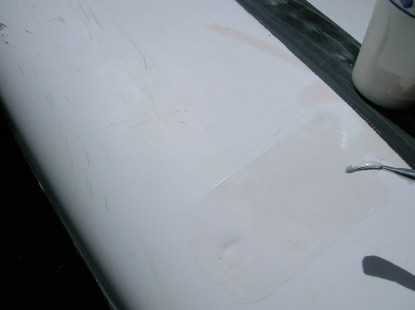

Before you move beyond 320 grit paper, take a look at the repair and decide if you’re happy with it. This is the time to apply another layer of gel coat if you need to. This coat should be smooth and thin so that it can be sanded and faired with 400-grit paper before you move on. If you need to add another layer, lightly sand with 220 grit, mask off the repair and repeat the application of gel coat.
[These days I dry sand with 220 and wetsand with 400, 600 and 1000. The intermediate grades aren’t necessary].
[A great way to remove excess gelcoat before sanding is to scrape it off with a fresh utility knife blade or safety razor blade. You hold the blade at a right angle to the hull and carefully scrape the gel coat back to flush with the hull. This speeds up the sanding process considerably.]

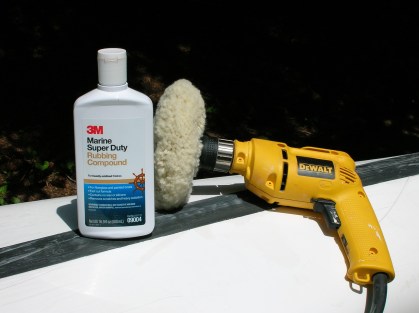

If you’ve done your work in the sanding department, the next part will be easy. You’ll be using a buffing bonnet on a drill or grinder to polish the hull. It’s difficult to apply enough “elbow grease” to shine past the 1000-grit paper that you used. Don’t use a car buffer. Most polishers used for cars are too gentle to bring out a deep shine in fiberglass. Using a high-speed polisher will let you buff the hull to a full shine and will blend away the last of the sanding marks.
With the drill and bonnet, you’ll need to use a rubbing compound. There are plenty of rubbing compounds available, but my favorite is 3M Super Duty Rubbing Compound, which is available at marine-supply stores. 3M also makes a product called Finesse-It, which is intended to be used after their rubbing compound to increase the shine. Try the rubbing compound alone first. You can always buff again with the finer compound if you’re unsatisfied with your initial results.

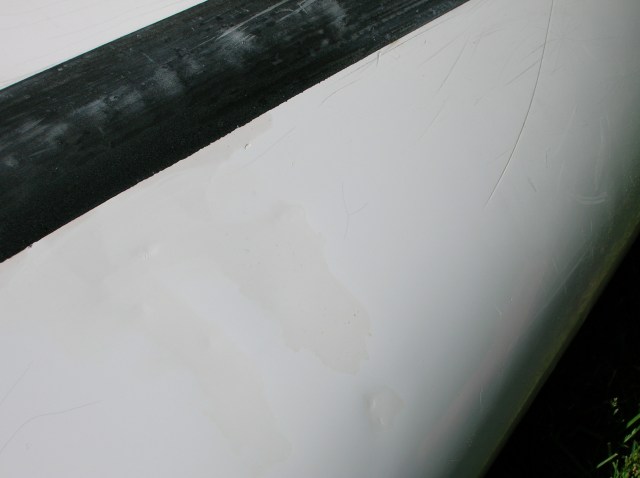

Apply the compound to the hull and go to work with the buffer. Use steady pressure and move the bonnet over the area. Keep the surface of the hull moist. The rubbing compound will dry as you use it, so add more to the hull or dribble a little water on to keep things lubricated. You shouldn’t have to polish for too long before you have a mirror shine. Wipe away the compound from time to time and look at the hull from an angle. If all has gone well, it will be hard to tell the repaired section of the hull from the rest of the boat.
[If you do decide to polish with Finesse-It, make sure you flip over your polishing bonnet to use the other side. Or thoroughly clean it to remove all rubbing compound. If there’s rubbing compound residue on the bonnet you won’t be able to improve the shine with Finesse-It.]
Practice Makes (Mostly) Perfect
Your first attempt at gel-coat repair may take a little longer than an afternoon, but once you have the hang of it, it’s easy to do. With practice, your results will improve, and you’ll learn your own tricks. Once you’re confident with gel-coat repair, you’ll be less worried about using your boat to its full potential. Remember not to worry—nothing is forever in fiberglass.
Addendum: Repairing Skin-Coat Aramid (Kevlar) Canoes
Working at Wenonah Canoe I’m frequently asked how to repair ultralight skin coat canoes made from DuPont Kevlar or similar aramid materials. As I mentioned above, Kevlar has a tendency to “fuzz” when sanded. Once disturbed, the fibers of this fabric stand up above the surface of the hull. If you apply resin to these fibers all you’ll do is make the fuzz solid. If you try to sand it down it will fuzz again. Very frustrating!
There are a few tips that will help you make skillful repairs on skin coat canoes.
First, a note about resins. We use polyester resin for all repairs here at Wenonah. It is compatible with the vinylester resin used in our canoe hulls and is both less expensive and easier to work with. Vinylester is used during production because of it’s superior wetting characteristics with aramid fabrics. There is no reason to use it for patching.
Use fiberglass cloth for patching. Aramid cloth is more difficult to use and does not result in a stronger repair. Fiberglass is what we use here whenever a canoe needs a patch.
Finally, there is no need to use epoxy resin for a repair. If you have epoxy in your workshop already, it will work. If you don’t there’s no need to spend the extra money on epoxy resin. Polyester resin creates a strong lasting repair and is both less expensive and more tolerant of imprecise mixing than epoxy resin.
On to the patching…
For deep scratches this means filling the scratch with catalyzed polyester resin and applying a piece of masking tape over the top to press down on the fibers and seal the repair from the air. When the resin is cured, remove the tape and carefully remove material until your patch is level with the hull. Scraping with a utility knife blade as noted above is an excellent way to remove material without sanding. I prefer to scrape with a blade until the repair is flush with the surface of the hull and then sand with 220 (wet or dry) followed by 400, 600 and 1000 wet. Buff as you would a gel coat repair to finish.
Larger abrasions may need to be covered with a piece of fiberglass cloth. If the ends of your canoe are badly worn you can cut a couple “skid plates” out of fiberglass to repair them. Cut the cloth on a diagonal to the weave (on the bias) so that it will smoothly conform to the contours of the hull. Apply a couple pieces of 5-6 ounce glass cut in a teardrop shape. The second patch should be slightly larger than the first as mentioned above in the section on interior hull repair. You can use a similar technique to fix any large abraded area on the hull.
Here at Wenonah we cover these repairs with something called Release Cloth (aka Peel Ply). This is a fabric that doesn’t stick to resin and seals off the patch from the air while it cures. Putting a piece of release cloth over your patch really improves the cosmetic results and usually eliminates the need for sanding with anything coarser than 220 grit. Wenonah supplies Release Cloth with our fiberglass repair kits, but you can find it online as well. A web search for peel ply release cloth should turn up a variety of options.
A glass repair done with release cloth and then sanded and polished as if it were a gel coat will produce a very clean, cosmetically pleasing repair on a skin coat canoe.
Light sanding and buffing is often the best cure for minor scratches that don’t go down into the fabric of the hull. Simply buffing the hull with 3M Super Duty rubbing compound will soften the edges of minor scratches and minimize their appearance. It isn’t worth trying to fill scratches like these. Just buff them out. If you don’t care about cosmetics, ignore them.
Buffing is also the best way to deal with oxidation on a skin coat hull that’s seen a lot of UV exposure. These boats will have a matte appearance. They can be shined up considerably with careful buffing.
Many people believe they should recoat the bottom of aramid canoes periodically as part of regular maintenance. We do not recommend doing this. Once the canoe is cured, fiberglass resins won’t form a chemical bond with the hull. This means that any resin that you paint onto the canoe will rely on mechanical bonds only for adherence. Over time these bonds will fail and the resin will flake off. Worse still, fiberglass resins are difficult to correctly catalyze when applied in thin layers. More than one person has created a sticky mess by trying to recoat a canoe and getting the catalyst ratio wrong. Finally, recoating adds unnecessary weight to a canoe without improving strength or durability. If you’re looking to restore an older skin coat canoe, spot patching and buffing is a far better choice than recoating.
A final note is that sometimes minor fuzzing can simply be sanded off. I know this sounds like exactly the opposite of what I said above, but if you carefully wet-sand with 400 or 600 grit paper you can pull off the worst of the fuzzing if the damage isn’t too severe. Wet sanding with fine paper is also a good way to address a gouge repair that may not have gone as smoothly as hoped. You may be able to carefully sand the surface smooth before applying another coat of resin to improve the appearance of the repair.
Whenever working with aramid fabric remember to sand carefully, go slowly, and remove as little material as possible. Careful work is the best way to insure a quality repair.
- 3M blue masking tape
- 3M Finesse-It polishing compound (optional)
- 3M Super Duty Rubbing Compound
- Paraffin canning wax
- Denatured alcohol
- Drill or grinder with polishing bonnet
- Fiberglass mat
- Gel coat
- Paper cups
- Sandpaper 60, 100, 220, 320, 400, 600, 800, 1000 grit [100, 220, 400, 600, 1000 are sufficient]
- Stirring sticks
- Waxed polyester resin
